Obstacle avoidance robot

This is a robot that can detect and avoid obstacles in its path using ultrasonic sensors and camera vision.

Features

Raspberry Pi Camera / USB Camera: Captures real-time video for obstacle detection
Raspberry Pi: Processes video feed and applies Canny edge detection
Motor Driver Module: Controls motor movements based on detected obstacles
DC Motors: Enables the robot to navigate around obstacles

How it Works

Canny Edge Detection: Identifies obstacle edges in the video feed
Region-Based Edge Analysis:
- More edges on the left? → Turn right
- More edges on the right? → Turn left
- Edges on both sides? → Stop
- No edges detected? → Move forward
Motor Control via Raspberry Pi GPIO: Adjusts movement based on obstacle detection

Objection Detection using Thermal Imaging Camera

Find out more about this simulation here

Components Comparison

Components	Simulation model	Real-world model
Microcontroller	Arduino Uno3	Raspberry Pi4
Temperature sensor	TMP36 (simulated)	MLX90640 (thermal imaging sensor)
Display	16x2 LCD (non-I2C)	Laptop display
Cooling system	Not required	Heat sink and fan for Raspberry Pi
Power supply	Simulated 5V from Arduino	5V USB-C adapter for Raspberry Pi

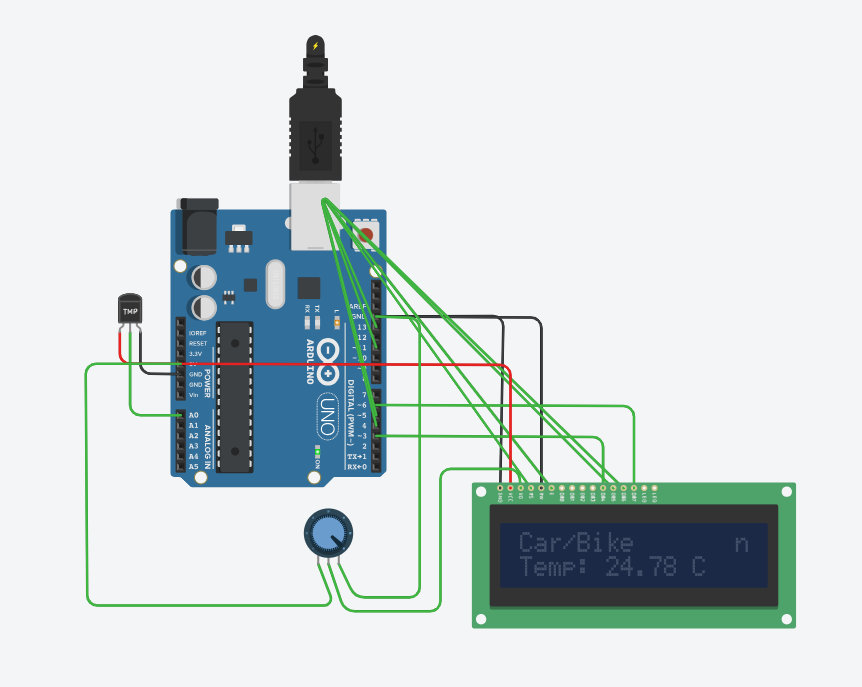

Simulation Components

Arduino Uno: Acts as the microcontroller to process data and control the system
TMP36 Temperature Sensor: Simulates temperature readings and outputs an analog voltage
16x2 LCD Display: Displays the temperature and object classification
Potentiometer: Adjusts the contrast of the LCD display

Simulation Flow

Temperature Sensing:
- TMP36 sensor simulates temperature readings
- Outputs an analog voltage proportional to the temperature
- Arduino reads the voltage and converts it into Celsius
Object Classification:
- Temperature above 30°C → Classified as Human/Dog
- Temperature below 30°C → Classified as Car/Bike
Display Output:
- First Line: Displays object classification (e.g., "Human/Dog" or "Car/Bike")
- Second Line: Displays temperature value in Celsius (e.g., "Temp: 35.00 C")
Adjusting Contrast:
- Potentiometer adjusts LCD contrast
- Turning the knob makes the text clearer or dimmer

Tinkercad Interaction

Manually adjust TMP36 temperature values
Arduino processes new values and updates the LCD in real-time
Observe object classification changes based on temperature

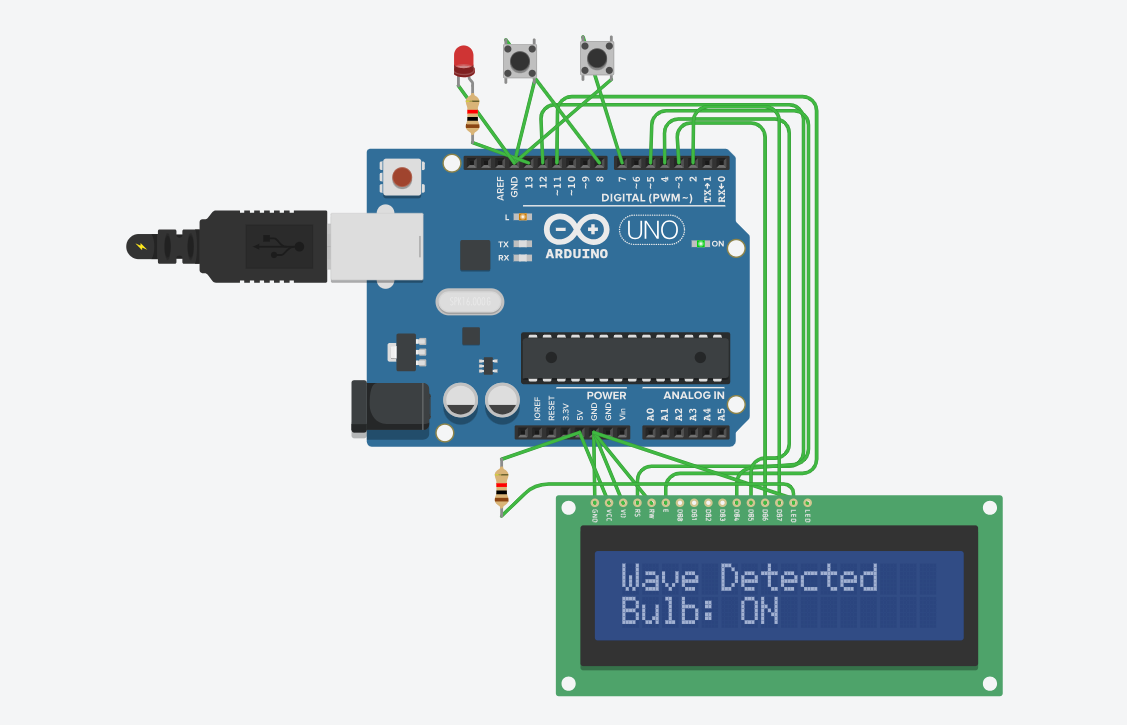

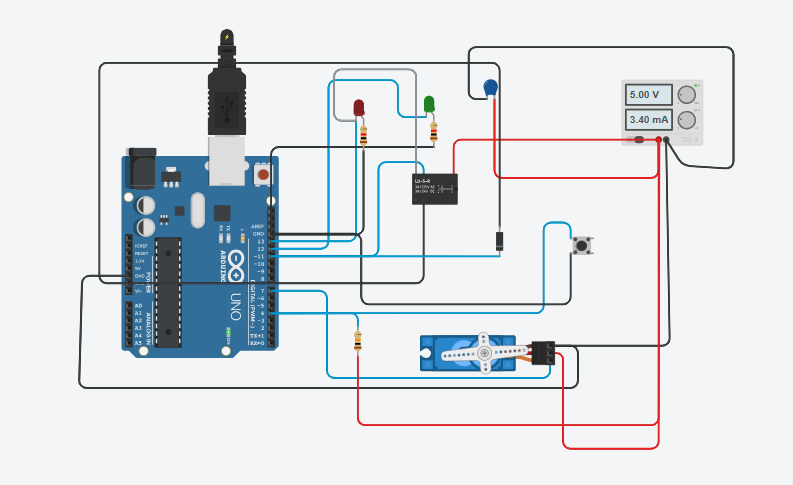

Gesture controlled device switch

Find out more about this simulation here

A user wants to control a bulb in their room using hand gestures. Instead of pressing a traditional switch, they can use a simple hand wave or other gestures to turn the bulb on or off. This makes it easier to control the appliance without physically interacting with a switch, which is especially useful for people with limited mobility or for anyone who wants a more modern way to interact with their home appliances.

Raspberry Pi Setup

Raspberry Pi: Any model with camera support (e.g., Raspberry Pi 3 or 4)
Relay Module: Controls the table lamp based on detected gestures
Camera Module: Captures hand gestures for processing (via OpenCV or APDS-9960)
LCD Screen (Optional): Displays lamp status and other information
Power Supply: Powers Raspberry Pi and connected components
Wires & Connectors: Connects the relay and other components
Table Lamp: Connected to the relay module for gesture-based control

How It Works

Gesture Detection:
- Camera module captures real-time images of the user's hand
- OpenCV processes gestures like hand waves or specific hand shapes
- Example: Open hand → Turns light on, Fist → Turns light off
Control Logic:
- Raspberry Pi processes the camera feed to recognize gestures
- When a gesture is detected, Raspberry Pi triggers the relay module
- Relay is connected to GPIO pins, acting as a switch for the lamp
- Python script configures GPIO pins to send HIGH or LOW signals
Status Display:
- LCD screen (if connected) displays "On" or "Off" based on gesture recognition
Power Supply:
- Raspberry Pi requires a 5V power supply
- Relay module may need a separate power source depending on lamp voltage

Camera Setup and Gesture Recognition

Raspberry Pi camera module or external camera captures real-time images
Python script in OpenCV processes camera feed and detects gestures
Defines a region of interest (ROI) where hand detection occurs

Relay Control via GPIO

GPIO pins control physical hardware based on gesture detection
HIGH signal → Completes the relay circuit, turning lamp on
LOW signal → Opens the circuit, turning lamp off
